Fingerprint Scanner
Identity and access management
Softex Fingerprint Readers
Softex’s desktop and laptop fingerprint readers provide quick and reliable biometric authentication by leveraging proven technology found in millions of top-branded laptop computers and PC peripherals in the market today.
Softex’s readers work with both its OmniPass and OmniPass Enterprise Single Sign-On products, enabling end users to access their personal can company-controlled applications with a single touch of a finger.

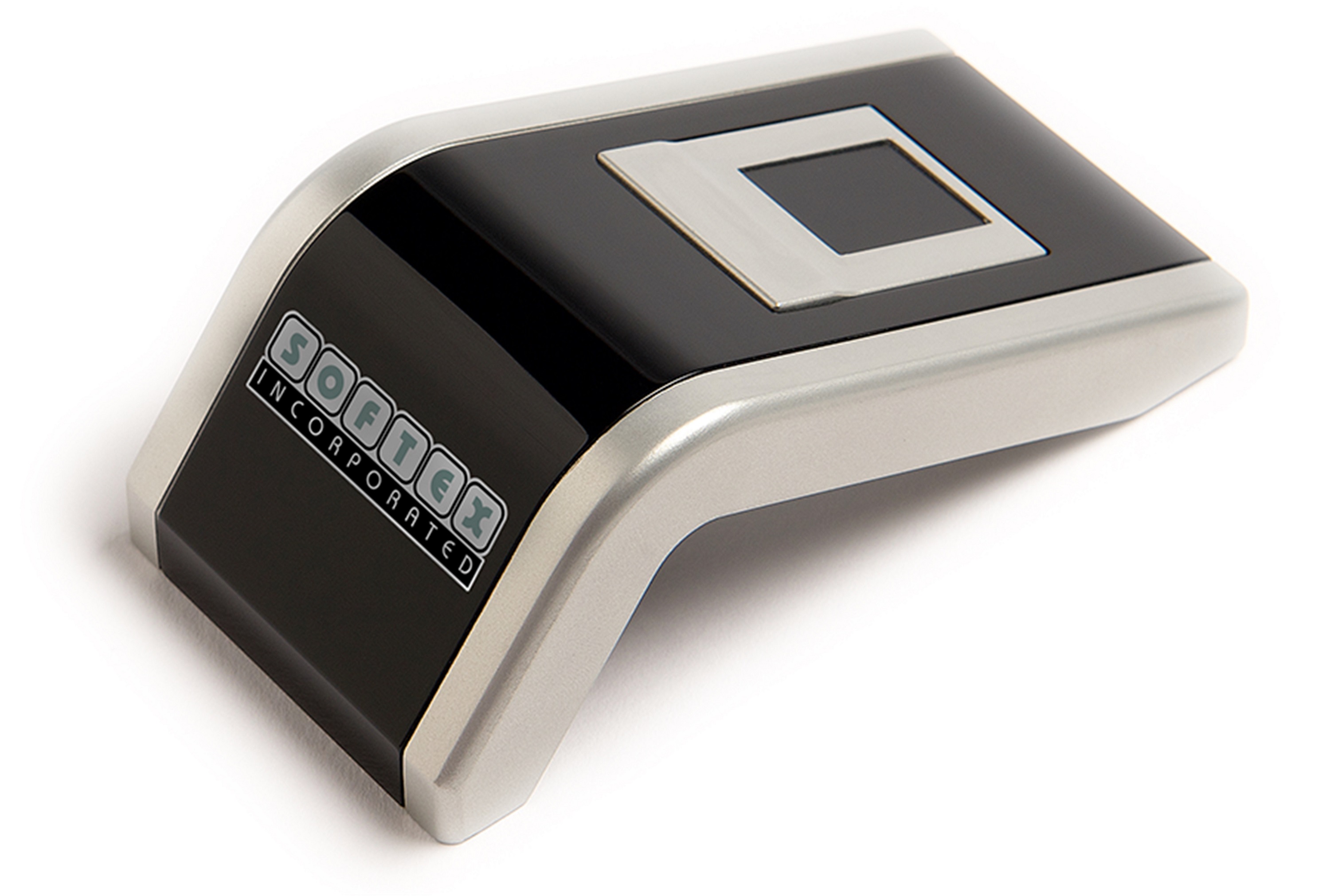

The Softex Desktop Fingerprint Reader for Windows PCs
- Desktop form factor
- Touch-style sensor
- Solid body design stays in place during finger touch
- Compatible with Windows 7, 8, 8.1 and 10
- Compatible with OmniPass and OmniPass Enterprise

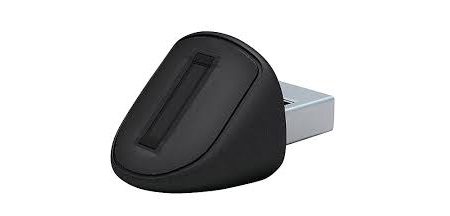

The Softex Mini Fingerprint Reader for Laptops and Tablets
- Laptop and mobile form factor
- Swipe-style sensor
- USB connection
- One of the smallest fingerprint readers on the market
- Compatible with Windows 7, 8, 8.1, and 10
- Compatible with OmniPass and OmniPass Enterprise
Specifications
 |
 |
|
| Laptop Fingerprint Reader | Desktop Fingerprint Reader |
| Compact Form Factor | |||
| Fingerprint sensor | Swipe | Touch | |
| Package size (mm) | 28.65 x 20.6 x 15.3 | 79 x 42 x 29 | |
| Scanned finger area (mm) | 9.75 x 0.41 | 11.9 x 16.9 | |
| Pixel array size (pixels) | 192 wide | 180 x 256 | |
| Weight (g) | 16 | 105 g | |
| High Performance | |||
| Acquisition speed (cms/sec) | Up to 30 | 0.45 s | |
| Image resolution | 508 dpi | 385 ppi (Pixel size 66 μm * 66 μm) | |
| Grayscale image depth | 8-bit (256 levels) | 8-bit (256 levels) | |
| Interface | USB 2.0 full speed | USB 2.0 full speed | |
| Secure | |||
| USB data encryption | 128 – bit AES | Hardware-based, low power | |
| In-device template storage | No | Yes | |
| Ruggedized | |||
| ESD protection |
IEC61000-4-2 Level 4; 15KV air; 8KV contact
|
8 kV contact discharge , 15 kV air discharge | |
| Operating temperature | 0° to +40° C | -10 °C to +60 °C at 95% RH (non-condensing) | |
| Protective coating | > 10 million swipes | 1 million finger touches guaranteed | |
| Efficient Power Management | |||
| Power imaging | ~ 31 mA @ 3.3V | < 100 mA @ 5V | |
| Power standby | < 400 mA @ 3.3V | ||
| Integration Ease | |||
| OS support | Windows 7, 8, 8.1, 10 | Windows 7, 8, 8.1, 10 | |
